Find Linear Fixture Lighting & Wall Wash Led Linear Light From Dolight

Wall Wash LED Linear Light LA50 48W

Model No: DWLA4-24V

Input Voltage: AC200-240V, 50/60HZ

Power: 48W

LED Source: SMD2835

Color Temp: 3000K/4000K/5700K

CRI: Ra>80

Power Factor: >0.9

IP Rate: IP40

Optional: 0-10V dimming, Dali dimming, or traic dimming

MOQ: 300PCS

Certificate: CE,RoHS,CB,SAA

Warranty Time: 5 Years

Payment Terms: T/T

Delivery Time: 5 to 7 days for samples; Bulk order need 25 days after deposit

Package: Paper carton with wooden pallet

Supply Ability: 7000pcs per month

Price: Get Latest Price

Inquire Online

Products Details

Thanks for choosing DW Wall Wash LED Linear Light. It is designed to be used in as the wall washer to highlight the picture, commodity, letters on the wall in the shops, stores, etc. Strong Aluminium profile housing and screw free diecasting end cap provide simple installation but stable performance. Elegant diffuser emits uniform and soft light. It’s free to combine different sizes together to display in a modern way.

◈ FEATURES

◪ t is designed to be used in as the wall washer to highlight the picture, commodity, letters on the wall in the shops, stores, school, etc.

◪ RA90 and dimmable optionslOpal
◪ Simply extrusion design with screw free diecasting end cap
◪ Integrated driver
◪ RA 90 optional
◪ CCT tunable optional

◈ PERFORMANCE

◈ TECHNICAL DATA SHEET

LA50
Photometric Parameters
NO.	Item	Parameter
1	LED	High luminous ﬂux SMD LED
2	Luminous Efﬁciency	>80LM/W
3	CCT	3000K,4000K 5700K (warm white, natural white, cool white)
4	CRI	≥80
5	BeamAngle	110°
6	LED Lifespan	≥50000 Hours
Electrical Parameters
7	dirver input voltage	AC220-240V /50～60Hz
8	OutputVoltage	DC30-40V
9	Power Supply Efﬁciency	≥88%
10	Power Factor	≥0.95
11	Protection Class	Class II
General Parameters
12	Rating IP	IP 40
13	Material	Aluminum + PC
14	Frame Finishing	Aluminium silver color
15	Installation	Suspended; Surface Mount; Recessed
16	WorkingTemperature	-20～+45℃
17	StoringTemperature	-40～+60℃
18	Working Humidity	15%~90%RH
19	Certiﬁcate	CE RoHS SAA

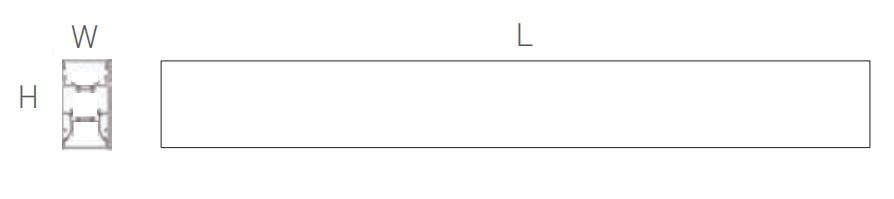

◈ DIMENSION

Model No.

Efficiency

power

CCT

Lumen

Size

DWLA4-24V

80lm/W

36W

3000K

4000K

5700K

2880lm

1140*50*80mm

DWLA4-24V

80lm/W

48W

3000K

4000K

5700K

3800lm

1450*50*80mm

◈ INSTALLATION INSTRUCTION

◈ APPLICATION

♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school

Dolight Optoelectronics Technology Co.,Ltd. is committed to providing the highest level of service for you. Our friendly and customer-focused employees are always pleased to help you with any questions you might have.
