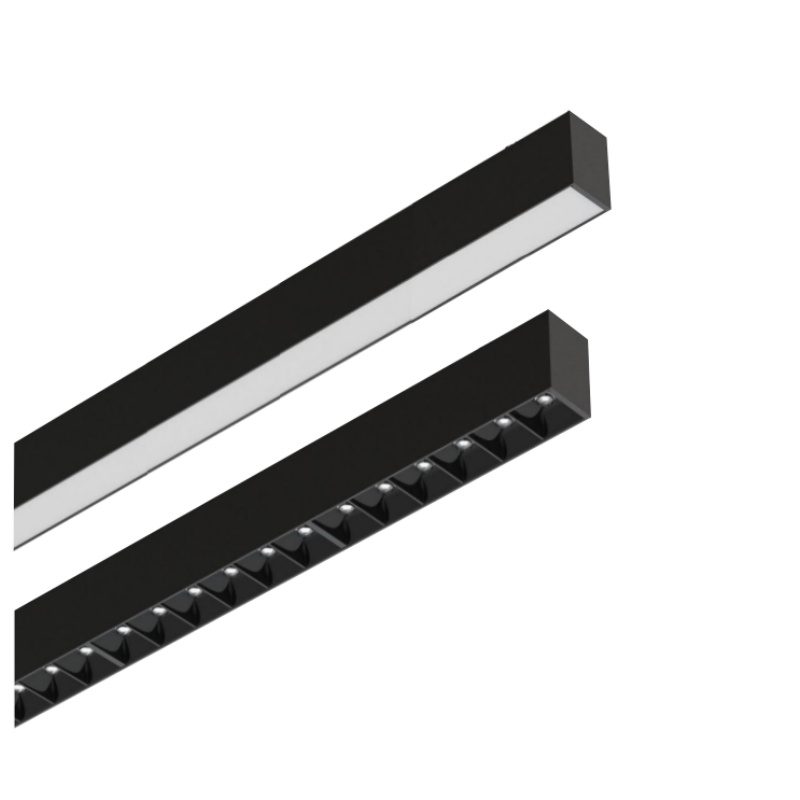

Recessed LED Linear Light RA90 Optional LW50

Recessed LED Linear Light RA90 Optional LW50

Model No
DWLW501236
Input Voltage
AC200-240V, 50/60HZ
Power
36W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming, or traic dimming
MOQ
300PCS
Certificate
CE, RoHS, CB,SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Products Details

Thanks for choosing DW recessed LED Linear Light. It’s a perfect solution for flat recess installation and shows linear light on the ceiling and wall. Strong Aluminium profile housing and screw free diecasting end cap provide simple installation but stable performance. Elegant diffuser emits uniform and soft light. It’s free to combine different sizes together to display in a modern way.

◈  FEATURES

bg


  • ◪      Different sizes of linear light is available

  • ◪      Opal diffuser design

  • ◪    Simply extrusion design with screw free diecasting end cap

  • ◪    Integrated driver

  • ◪   RA 90 optional

  • ◪   CCT tunable optional


◈  PERFORMANCE

bg






◈ TECHNICAL DATA  SHEET

bg


LW50

Photometric Parameters

NO.

Item

Parameter

1

LED

High luminous flux SMD LED

2

Luminous Efficiency

>80LM/W

3

CCT

3000K,4000K 5700K

(warm white, natural white, cool white)

4

CRI

≥80

5

BeamAngle

110°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

dirver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.95

11

Protection Class

Class II

General Parameters

12

Rating IP

IP 40

13

Material

Aluminum + PC

14

Frame Finishing

Aluminium silver color

15

Installation

Recessed

16

WorkingTemperature

-20~+45℃

17

StoringTemperature

-40~+60℃

18

Working Humidity

15%~90%RH

19

Certificate

CE RoHS


◈  DIMENSION

bg


Model  No.

Efficiency

power

CCT

Lumen

Size

DWLW501236

80lm/W

36W


3000K

4000K

5700K


2880lm

1140*68*75mm

DWLW501248

80lm/W

48W


3000K

4000K

5700K


3800lm

1450*68*75mm



◈  INSTALLATION   INSTRUCTION

bg




◈  APPLICATION

bg


♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
