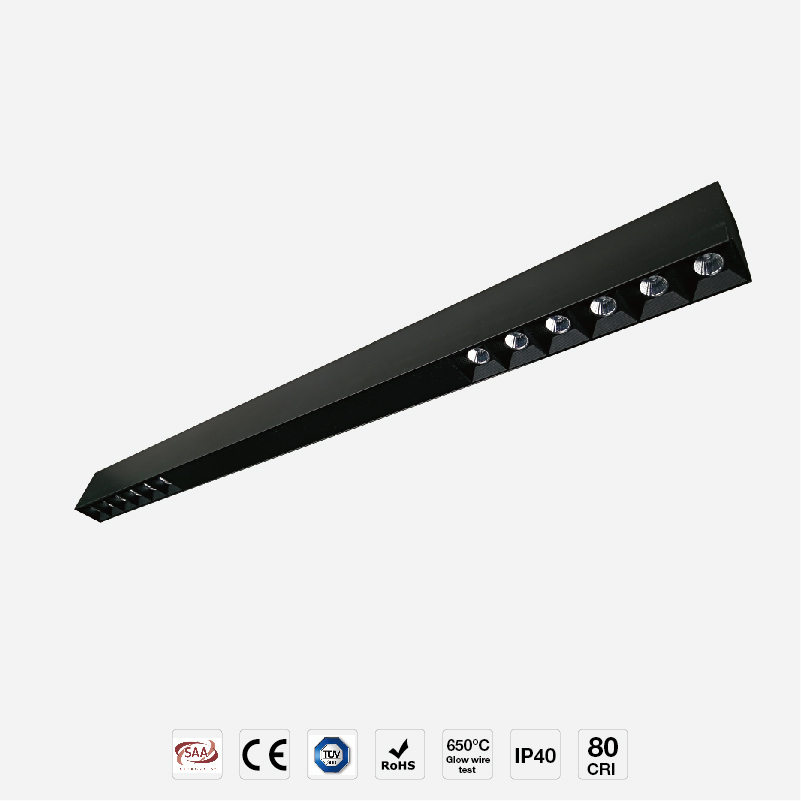

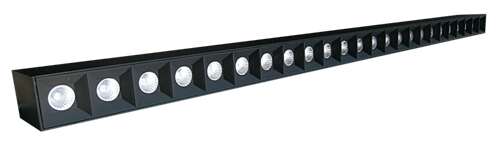

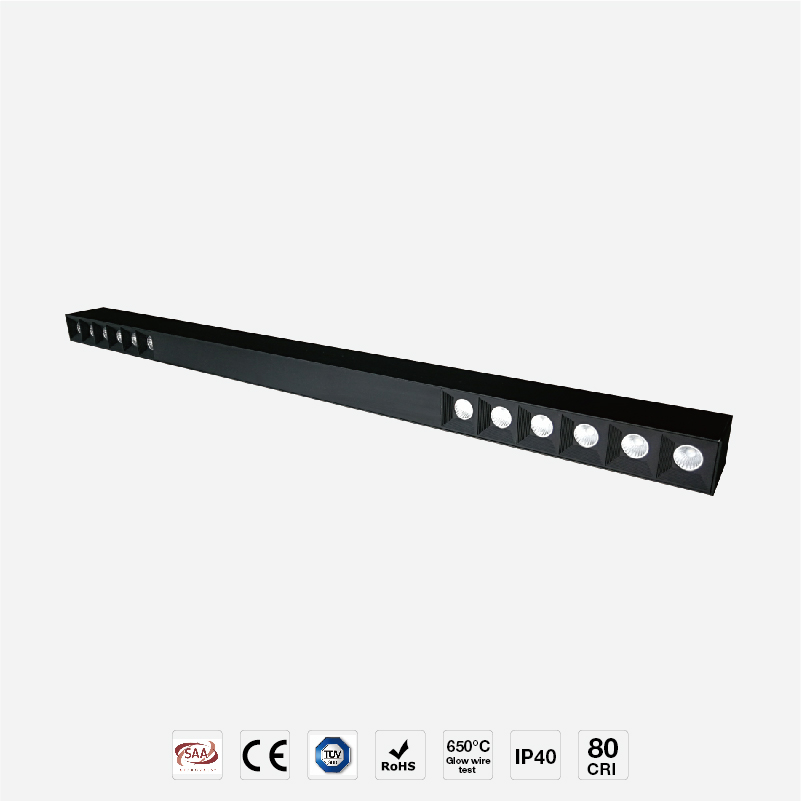

Lens LED Linear Light LL50 Lower Glare UGR<14

Model No: DWLL548

Input Voltage: AC200-240V, 50/60HZ

Power: 48W

LED Source: SMD2835

Color Temp: 3000K/4000K/5700K

CRI: Ra>80

Power Factor: >0.9

IP Rate: IP40

Optional: 0-10V dimming, Dali dimming, or traic dimming

MOQ: 300PCS

Certificate: CE,RoHS,CB,SAA

Warranty Time: 5 Years

Payment Terms: T/T

Delivery Time: 5 to 7 days for samples; Bulk order need 25 days after deposit

Package: Paper carton with wooden pallet

Supply Ability: 7000pcs per month

Price: Get Latest Price

Inquire Online

Products Details

Thanks for choosing DW Lens LED Linear Light. Revolutionary LENS design to offer specific lighting output. Strong Aluminium profile housing and screw free diecasting end cap provide simple installation but stable performance. Elegant diffuser emits uniform and soft light. It’s free to combine different sizes together to display in a modern way.

◈ FEATURES

◪ Revolutionary LENS design to offer specific lighting output;
◪ Lower glare UGR<14
◪ Simply extrusion design with screw free diecasting end cap
◪ Integrated driver
◪ RA 90 optional
◪ CCT tunable option
◪ It could be used in the sho[, store and all other commercial place

◈ PERFORMANCE

◈ TECHNICAL DATA SHEET

LL50
Photometric Parameters
NO.	Item	Parameter
1	LED	High luminous ﬂux SMD LED
2	Luminous Efﬁciency	>80LM/W
3	CCT	3000K,4000K 5700K (warm white, natural white, cool white)
4	CRI	≥80
5	BeamAngle	90°
6	LED Lifespan	≥50000 Hours
Electrical Parameters
7	dirver input voltage	AC220-240V /50～60Hz
8	OutputVoltage	DC30-40V
9	Power Supply Efﬁciency	≥88%
10	Power Factor	≥0.95
11	Protection Class	Class II
General Parameters
12	Rating IP	IP 40
13	Material	Aluminum + PC
14	Frame Finishing	Aluminium silver color
15	Installation	Suspended, Surface mount, Recessed
16	WorkingTemperature	-20～+45℃
17	StoringTemperature	-40～+60℃
18	Working Humidity	15%~90%RH
19	Certiﬁcate	CE RoHS

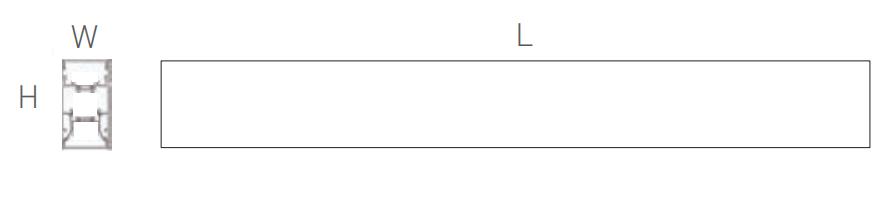

◈ DIMENSION

Model No.	Efficiency	power	CCT	Lumen	Size
DWLL436	100lm/W	36W	3000K 4000K 5700K	3600lm	11405080mm
DWLL548	100lm/W	48W	3000K 4000K 5700K	4800lm	11405080mm
DWLL430B	100lm/W	30W	3000K 4000K 5700K	3000lm	11405080mm
DWLR548B	100lm/W	36W	3000K 4000K 5700K	3600lm	14505080mm

◈ INSTALLATION INSTRUCTION

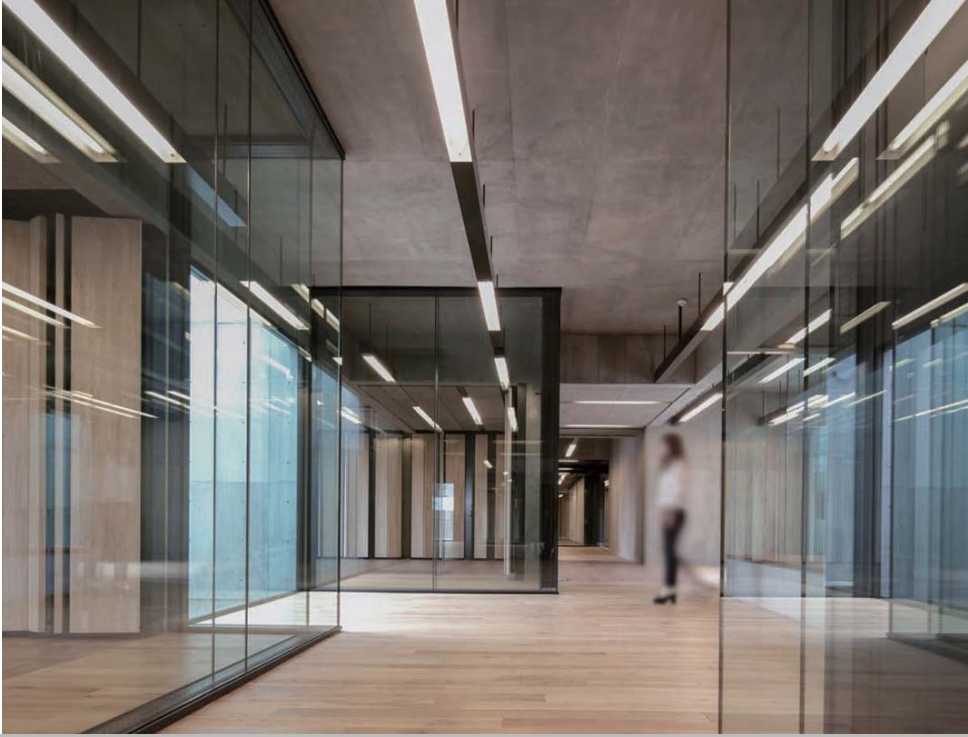

◈ APPLICATION

♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
