SuspensionreflectorLEDLinearlight120lm/wUGR<19

SuspensionreflectorLEDLinearlight120lm/wUGR<19

Model No
DWLR436-1
Input Voltage
AC200-240V, 50/60HZ
Power
36W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming
MOQ
300PCS
Certificate
CE,RoHS,CB,SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7 days for samples; Bulk order need 25 days after deposit
Package
Paper Carton
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first




Products Details

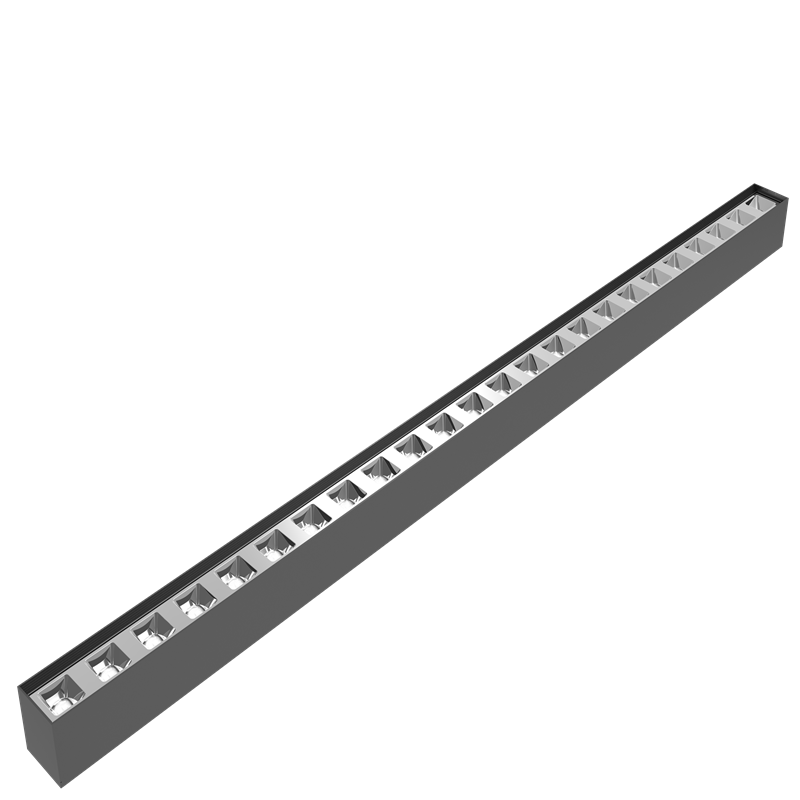

Thanks for choosing reflector module LED linear light. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution. Our reflector ledliner light  has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs.

◈  FEATURES

bg



          ◪   Classic flavor grille design;

         ◪   High effieiency up to 120lm/w;

         ◪   Lower glare UGR<19 ;

         ◪   Simple extrusion profile with screw free diecasting end cap;

         ◪   Integarted driver,RA90 optional;

         ◪   Flexible installation:Suspended,flat recessed,surfacemount;

         ◪   Simple continuous connection;

         ◪   X,T,L connector help to organise the linear light into different shapes;

         ◪   Lifud,BOKE,Tridonic diver or other driver optional;
































◈  PERFORMANCE

bg



◈ TECHNICAL DATA  SHEET

bg


DWLR436-1

Photometric Parameters

NO.

Item

Parameter

1

LED

High luminous flux SMD LED

2

Luminous Efficiency

120LM/W

3

CCT

3000K,4000K 5700K

(warm white, natural white, cool white)

4

CRI

≥80

5

BeamAngle

70°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

dirver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.95

11

Protection Class

Class II

General Parameters

12

Rating IP

IP 40

13

Material

Aluminum + PC

14

Frame Finishing

Aluminium silver color

15

Installation

Suspended, Surface mount, Recessed

16

WorkingTemperature

-20~+45℃

17

StoringTemperature

-40~+60℃

18

Working Humidity

15%~90%RH

19

Certificate

CE RoHS


◈  DIMENSION

bg


Model  No.

Efficiency

power

CCT

Lumen

Size

DWLR436

120lm/W

36W


3000K

4000K

5700K


4320lm

W55XH58XL1124mm

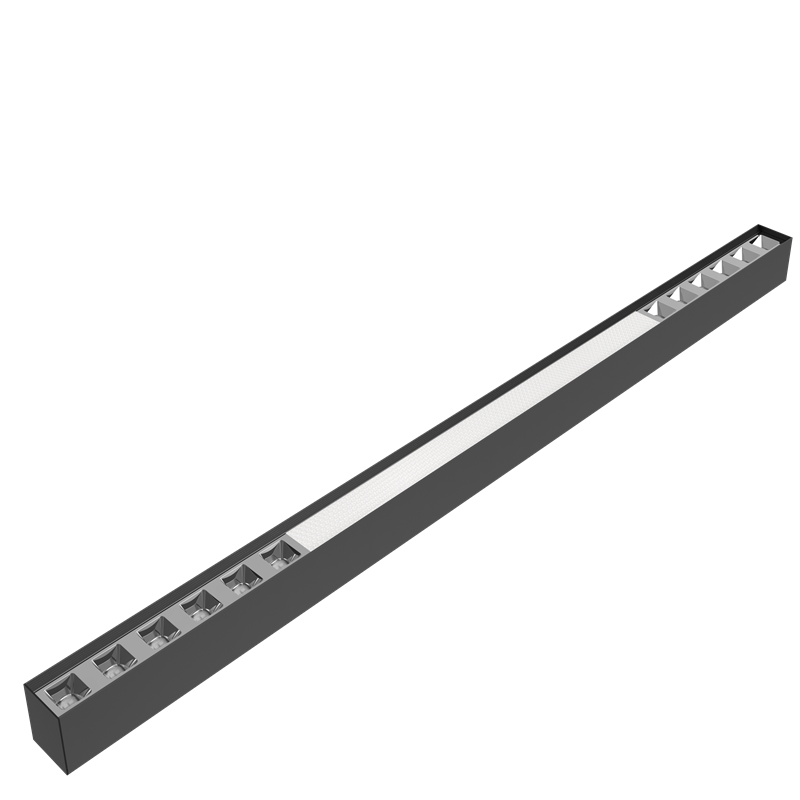

DWLR536

120lm/W

48W


3000K

4000K

5700K


5760lm

W55XH58XL1404mm

DWLR436B

100lm/W

24W


3000K

4000K

5700K


2400lm

W55XH58XL1124mm

DWLR548B

100lm/W

36W


3000K

4000K

5700K


3600lm

W55XH58XL1404mm

DWLR436P

100lm/W

36W


3000K

4000K

5700K


3600lm

W55XH58XL1124mm

DWLR448P

100lm/W

48W


3000K

4000K

5700K


4800lm

W55XH58XL1404mm

DWLR436U

100lm/W

36W


3000K

4000K

5700K


3600lm

W55XH58XL1124mm

DWLR448U

100lm/W

48W


3000K

4000K

5700K


4800lm

W55XH58XL1404mm




◈  INSTALLATION   INSTRUCTION

bgmETHIN

Method A: Suspending

1. Tighten the set screws to fix 4 strip corners at both ends       2.  Fix the lifting brackets and cable holders at both ends with screws

3. Fix the bases on the ceiling according to the drawing              4.String one end of the sling into the cable holder;

and install the cables into the bases.

Method B: Ceiling Installation

  1. The two ceiling brackets are screwed to the ceiling, and the       2. Install the lamp into the ceiling brackets and lock the  2 brackets are installed within lamp length.                                      screws on the ceiling brackets;

Mehod C: Connected with End Caps

1. Remove the two small pieces at the top of the end caps;          2. Use the screw to fix the bar connectors to one end of the                                                                                                                     products, then instert another products to be spliced into the                                                                                                               bar connectors and lock the machine screw;

Method D: Connected without end caps

  1. Remove the black cover and end cover,  and fix the bar               2. Instert another product to the bar connector and lock the connectors on the side of the product with set screws;        machine connectors , install all the black cover.

L Connector Connection

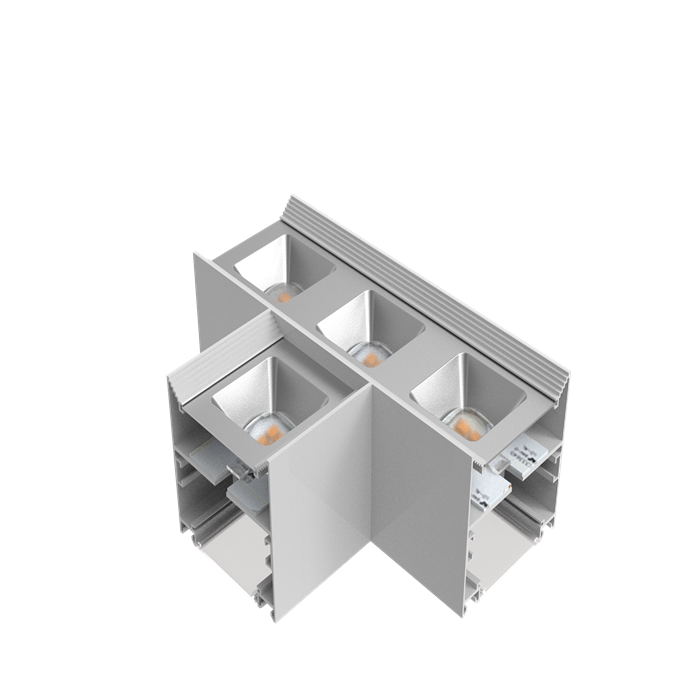

T Connector Connection

X Connector Connection

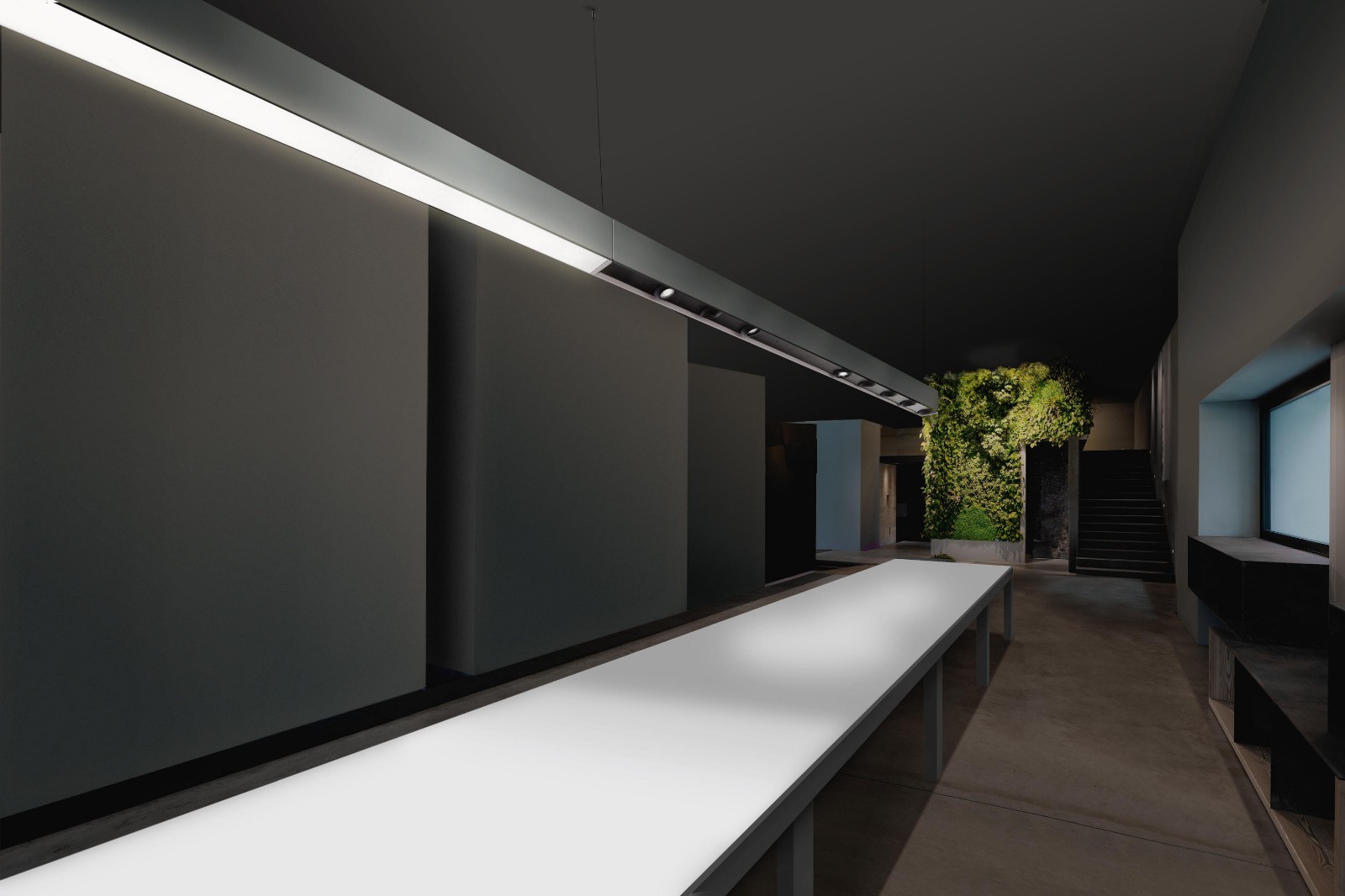

◈  APPLICATION

bg


♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
