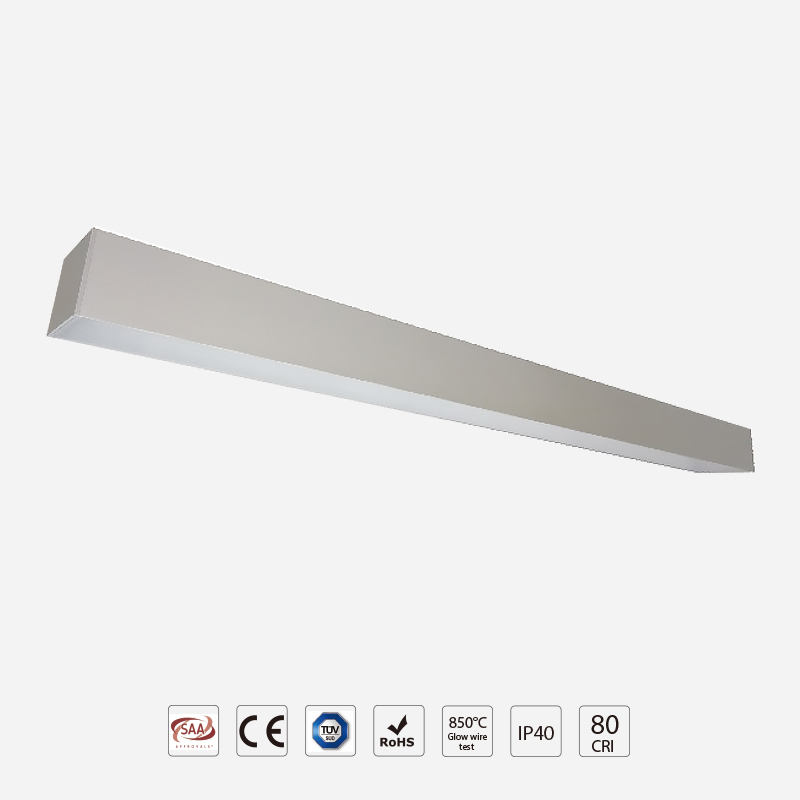

Classic LED Linear Light LO50

Classic LED Linear Light LO50

Model No
DWLO501548
Input Voltage
AC200-240V, 50/60HZ
Power
48W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming, or traic dimming
MOQ
300PCS
Certificate
CE, RoHS, CB,SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Products Details

Thanks for choosing DW LO Series Linear Light.Flexible installation: suspended, surface mount, recessed and wall mount installation. Strong Aluminium profile housing and screw free diecasting end cap provide simple installation but stable performance. Elegant diffuser emits uniform and soft light. It’s free to combine different sizes together to display in a modern way.

◈  FEATURES

bg


  • ◪      Different sizes of linear light is available

  • ◪    Opal diffuser design

  • ◪    Simply extrusion design with screw free diecasting end cap

  • ◪    Integrated driver

  • ◪   RA 90 optional

  • ◪   CCT tunable optional


◈  PERFORMANCE

bg






◈ TECHNICAL DATA  SHEET

bg


LO50

Photometric Parameters

NO.

Item

Parameter

1

LED

High luminous flux SMD LED

2

Luminous Efficiency

>80LM/W

3

CCT

3000K,4000K 5700K

(warm white, natural white, cool white)

4

CRI

≥80

5

BeamAngle

110°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

dirver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.95

11

Protection Class

Class II

General Parameters

12

Rating IP

IP 40

13

Material

Aluminum + PC

14

Frame Finishing

Aluminium silver color

15

Installation

Suspended; Wall mount

16

WorkingTemperature

-20~+45℃

17

StoringTemperature

-40~+60℃

18

Working Humidity

15%~90%RH

19

Certificate

CE RoHS


◈  DIMENSION

bg


Model  No.

Efficiency

power

CCT

Lumen

Size

DWLO301236

80lm/W

36W


3000K

4000K

5700K


2880lm

1140*38*75mm

DWLO301548

80lm/W

48W


3000K

4000K

5700K


3800lm

1450*38*75mm

DWLO501236

80lm/W

36W


3000K

4000K

5700K


2880lm

1140*50*75mm

DWLO501548

80lm/W

48W


3000K

4000K

5700K


3800lm

1450*50*75mm

DWLO601236

80lm/W

36W


3000K

4000K

5700K


2880lm

1140*60*80mm

DWLO601548

80lm/W

48W


3000K

4000K

5700K


3800lm

1140*60*80mm

DWLO751236

80lm/W

36W


3000K

4000K

5700K


2880lm

1140*75*78mm

DWLO751548

80lm/W

36W


3000K

4000K

5700K


3800lm

1140*75*78mm



◈  INSTALLATION   INSTRUCTION

bg




◈  APPLICATION

bg


♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
