Model No
DWTP124R
Input Voltage
AC200-240V, 50/60HZ
Power
24W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP54
Optional
0-10V dimming, Dali dimming
MOQ
300PCS
Certificate
CE, RoHS, CB, SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. Moreover, we will cultivate our business little by little and perform each task step by step. Abiding by the management principle of 'Three-Good & One-Fairness (good quality, good credibility, good services, and reasonable price), we are looking forward to welcoming the new era with you.The installation of DW LED linear light is flexible, e.g. suspended, recessed, and wall mounted
2. DW LED light is OEM and ODM available. Dolight LED Panel believes the achievement of customer expectation will enhance the customer satisfication.
3. There is newly developed function for linear light fixture and will bring better user experience. DW LED trunk system is highly recognized in Europe
4. The installation of DW LED trunk system is tool-less. Among all kinds of linear led lighting,linear lighting systems, exterior linear led lighting has widely found its applications in industry because of its fine properties.
5. DW LED light has been patented for over 10 times. led linear suspension lighting,supermarket light has some outstanding advantages, such as industrial linear lighting.

Products Details

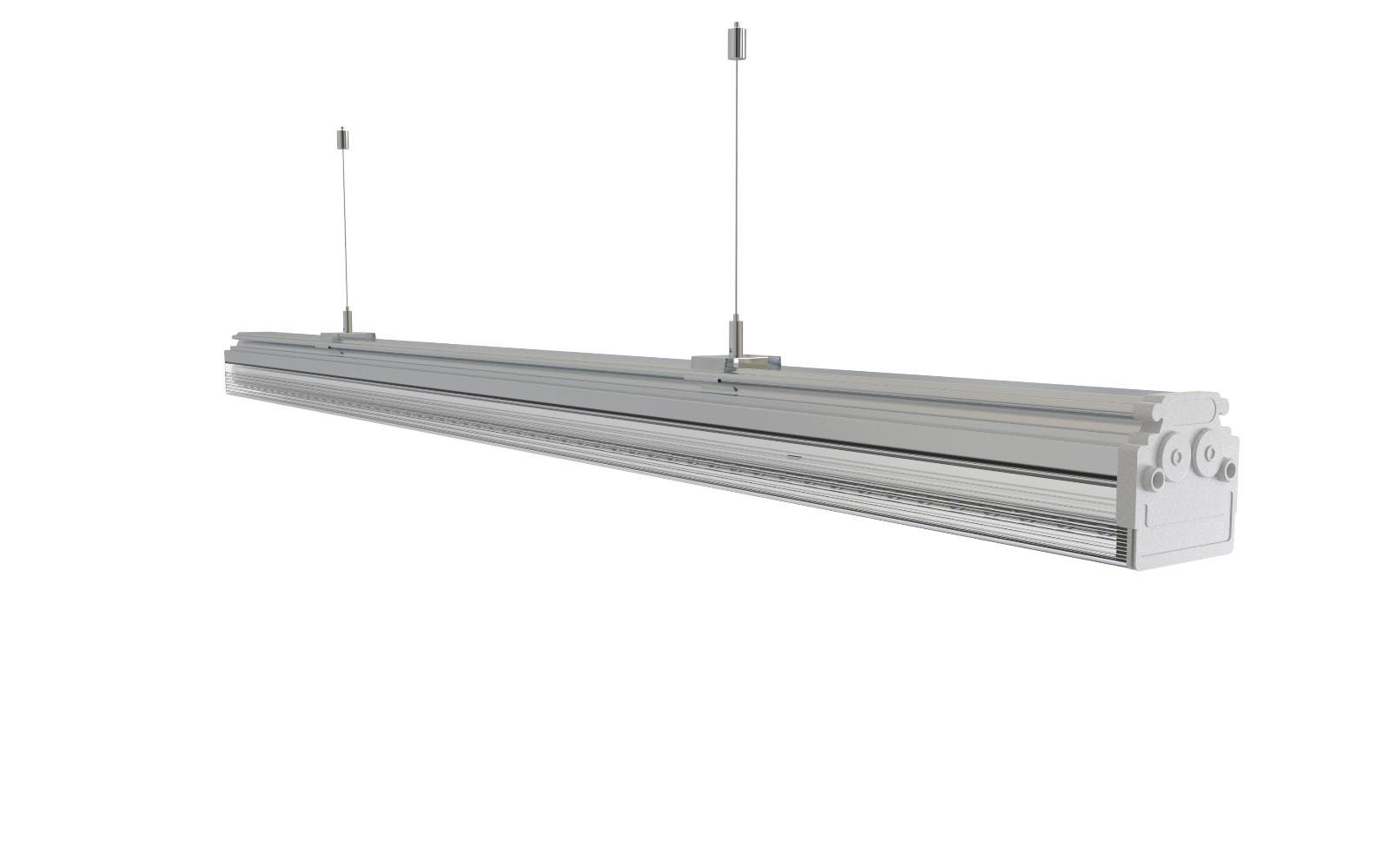

Thanks for choosing DW trunk linear light. The LED Linear Trunking System is a continuous LED lighting system. All system components, trunking rail and luminaire inserts are perfectly matched according to 1500mm/600mm system dimensions.It is an energy efficiency champion(efficiency 140lm/W, 160lm/W), and also helps reduce installation and maintenance costs  with  tool-free  and smart structure.


◈  FEATURES

bg


  • ◪      Low installation cost - everything in one box and installation is tool-less.

  • ◪      The high light efficiency of 140 lm/W ,160lm/W makes reduction on energy consumption and additional cost.

  •    Ra >80

  •    CCT: 3,000K/4,000K/5,000K/6000K

  •    A wide range of optics from 30° to 90° distribution, as well as asymmetric 25° and double asymmetric 25° distribution.

  •    Emergency versions available.

  •    Dimming versions available.

  •    Different length with various power is available.

  •    X, L and T Standard Module Node connectors with electrical feed-in and feed-out.

  •    Mounting Options: chain suspended, cord suspended, rod suspended or surface mounted.

  •    Colour scheme:  White coated aluminium housing and silver color optional.



◈  TECHNICAL DATA  SHEET

bg


                                                          IP54 Trunk Linear Light

Material

Aluminum profile

Colour scheme

 White coated aluminium housing and silver color

Installation type

Rotatory knob or holding clamp

Model

DWTP124R/ DWTP124RX

DWTP440R/

DWTP440RX

DWTP540R/

DWTP540RX

DWTP560R/

DWTP560RX

Dimensions( Length x Breadth x Height)

576 x65 x92mm

1148 x65 x92mm

1,434 x65 x92mm

1,434x65x92mm

Weight

Approx.1.5 kg

Approx.2.4kg

Approx.2.8 kg

Approx.2.8 kg

Protection type

IP54

Illuminant properties

Illuminant Type

LED-Moduls with Mid-Power-LEDs

Optical System

Wide,Narrow,wide,Flat and double Asymmetric light distribution

Luminous Flux

3120lm –3300lm

3120lm –3300lm

4,320lm –4,680lm

7,200lm -7,800lm

Luminous Output

140lm/w -160lm/w (Customized)

Colour Temperature

3,000K /4,000K / 5,000K /6,000K

Colour Rendering Index(Ra)

> 80

Dimming( Power control)

With / without DALI

Lifetime at (ta)30°

50,000 h

Electronic Properties

Power Rating

24W

40 W

48 W

60W

Protection class

SKI

Operating voltage

AC 180 - 240V      (AC100-277V)

Frequency

50 / 60 Hz

Installation Requirements

Application areas

Halls,warehouses,manufacturing facilities,sales premises

Specific Installation

Rail- Light System

Installation height

3 to 20m

Permissible ambient temperature (ta) 30°

-25℃to +35℃

Other properties

Certification

CE / TUV / SAA

Connection with circuit breaker (B16)

200 Pcs

120 Pcs

100 Pcs

80 Pcs

Special features

End cover

IP20


◈  PERFORMANCE

bg



Sharp-30°

Narrow-60°

Wide-90°

Asymmetric

 (Left/ Right)Pending 25°

Double

 Asymmetric25°







90°  60W  pro trunk linear



◈  DIMENSION

bg




ltem

ltem

Wattage

Luminous Flux

LED

Dimension

140lm/w

DWTP124R

24W

3120lm

SMD2835

576×65×92mm

140lm/w

DWTP440R

40W

3120lm

SMD2835

1148×65×92mm

140lm/w

DWTP540R

48W

4320lm

SMD2835

1434×65×92mm

140lm/w

DWTP560R

60W

7200lm

SMD2835

1434×65×92mm

140lm/w

DWTP124RX

24W

3120lm

SMD2835

576×65×92mm

140lm/w

DWTP440RRX

40W

3120lm

SMD2835

1148×65×92mm

140lm/w

DWTP540RX

48W

4320lm

SMD2835

1446×65×92mm

140lm/w

DWTP560RX

60W

7200lm

SMD2835

1446×65×92mm

X=5/7/9, it means 5 wires, 7 wires, 9 wires


◈  APPLICATION

bg


♦ Commercial

♦ Industrial

♦ Warehouse

♦ Other indoor lighting



◈ INSTALLATION INSTRUCTION

bg

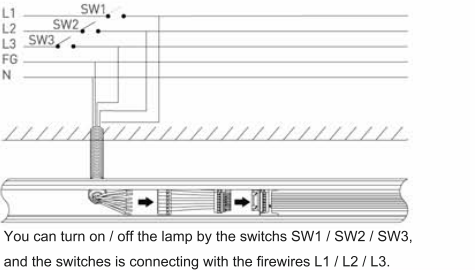

◈  3-PHASE CIRCUITS

bg

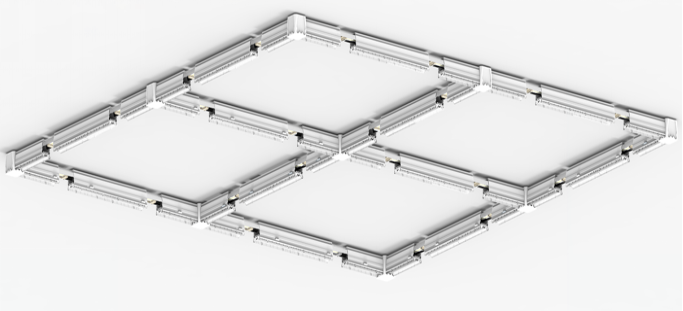

◈  5 WIRES, 7 WIRES VERSIONS CAN BE BUILT INTO 2-3 LOOPS NODE CONNECTOR

bg


All system components can be combined without tools. X, T and L connectors expand the system’s application range. Each node connector has diverse of electrical feed-in and feed-out. The node connector is not only to  connect the cross trunking, but also to connect the wire inside the trunking, and the node connector itself could even be the electricity feed-in point.


L Nodeconnector

T Node Connector

XNode Connector


◈  GENERAL SAFETY INSTRUCTIONS

bg



  • • Installation and maintenance must be performed by authorised and trained staff.

  • Before wiring, make sure that the cables are de-energised. During wiring work, make sure that the cables remain de-energised (e.g. prevent switching back on).

  • Observe your national safety regulations for the installation and use of this lamp.

  • The manufacturer accepts no liability for injuries or damage caused by unintended use or incorrect installation.

  • If the lamp is retroactively modified, the person who made the modifications then becomes the manufacturer.

  • To avoid risks, the lamp must only be operated if there are no visible signs of damage to components, in particular to the connecting cable.

  • Only the manufacturer is authorized to replace defective components.

  • The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

  • All dimensions stated in mm.

  • The drawings are not to scale.

  • Technical changes are reserved
