Home  >  Best PRODUCTS Supplier  >  Customized Led Panel Lights  >  Best Grille LED Panel For sell  >  grille Custom lightcompetitive flavor grille led panel Dolight LED Panel lens
grille Custom lightcompetitive flavor grille led panel Dolight LED Panel lens

grille Custom lightcompetitive flavor grille led panel Dolight LED Panel lens

Model No
DWR606036
Input Voltage
AC200-240V, 50/60HZ
Power
36W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming, or traic dimming
MOQ
300PCS
Certificate
CE, RoHS, CB, SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

Application Scope
's can play a role in various industries.With a focus on customers' potential needs, has the ability to provide one-stop solutions.
Product Details
's is perfect in every detail.
Product Advantage
  • We are confident about the exquisite details of .
  • produced by stands out among many products in the same category. And the specific advantages are as follows.
  • is one of 's multiple product series.
  • Dolight Optoelectronics Technology Co.,Ltd., situated in , is a company. We are mainly devoted to the business of .
  • It is the design of that boosts our sales business. DW LED trunk system is recognized for its energy efficiency.
  • has won many awards in the industry with strong technology.
  • With wide application, is suitable for various industries. Here are a few application scenes for you.
  • introduces a group of experienced and professional talents. They are committed to providing technical support for the production of high-quality products which greatly improves corporate core competency.
Company Advantages
1. square led panel is well sold in the state, and exported to many overseas markets. Strict quality control is taken over DW LED light, from raw materials to finished products
2. DW LED trunk system is recognized for its energy efficiency. Popular cabinet styles, finishes, and accessories combined with cheap led panel light construction make Dolight LED Panel 2x2 led ceiling panels as durable as they are beautiful.
3. backlit ceiling panels's service life is prolonged than common led panel light fittings. DW LED linear light is available by different sizes
4. Famously branded chips such as Epistar, Samsung, and Uniform are installed in DW LED panel light, We Can Offer Customers A Full Range Of grille led panel, office led panel light, high quality led panel light For Different Application.
5. Our range also meets the customized led ceiling panels of customers. DW LED trunk system is used in shops, supermarkets, office, etc
6. The offered flat panel led lights is fabricated under the proper observation of our knowledgeable professionals by making use of premium quality drop ceiling light panels and modern technology as per standards lay down by the industry. DW LED trunk system is available by different lengths with various power
7. Today, Dolight Optoelectronics Technology Co.,Ltd. has successfully built a comprehensive, tridimensional corporate image. A professional R&D team has been established to support the manufacturing of DW LED linear light
8. Dolight Optoelectronics Technology Co.,Ltd. has achieved a business policy that to grow from small to large in led backlight panel field. Soft lighting is achieved by DW LED panel light
9. The sales network of Dolight LED Panel is famous for its wide applications into different regions. DW LED panel light is always quality guaranteed for 3-5 years

Products Details

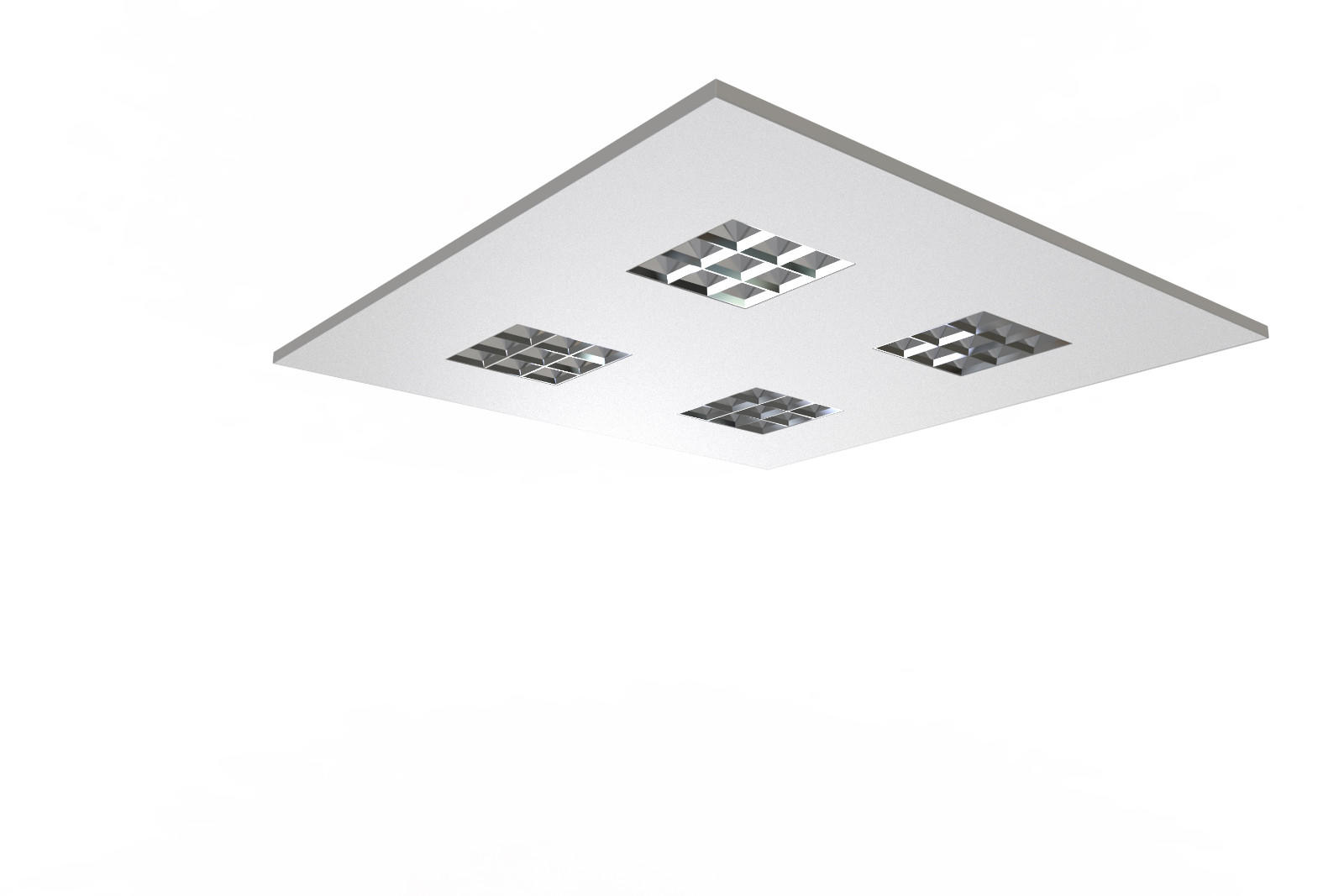

Dolight new design UGR<16 Grille LED panel light, it’s designed to replace conventional Grid Panel Light with fluorescent tube fixtures. The light with lower UGR, UGR<16, softer light, protect eyes.


◈  FEATURES

bg
1

Enhanced

performance

3

Quick and

easy installation

2

White sturdy aluminium frame





◈  ADVANTAGE

bg


bg



  • ◪      TUV Listed CE, CB, and RoHS, SAA,ISO9001;

  • ◪      Classic flavor grille LED Panel;

  •    Lower glare UGR<16, all the value is lower than 19;

  •    130lm/W or 140lm/W;

  •   More accurate light distribution control.



◈  SPECIFICATION

bg



UGR<16 Grille LED Panel Light

 Photometric Parameters

  NO.

 Project

Parameter

1

LED

SMD2835

2

Luminous Efficiency

130 Lm/W

3

CCT

3000K-5700K (warm white, natural white, cool white)

4

CRI

≥80

5

Beam Angle

 12°, 55°, 75°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

driver input voltage

AC220-240V /50-60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.9

11

Protection Class

Class II

General Parameters

12

Rating IP

IP40

13

Material

Aluminum + PMMA

14

Frame Finishing

White

15

Installation

Recessed/Pendant

16

Working Temperature

-20~+45℃

17

Storing Temperature

-40~+60℃

18

Working Humidity

15%~90%RH


◈  SIZE

bg




Photometric Data



Size



Efficiency

Model No.

Wattage

Luminous flux

CRI

LED

Dimension

120lm/W

DWB606036H

36W

4320lm

80Ra

SMD2835

595x595x26mm

DWB3012036H

36W

4320lm

80Ra

SMD2835

295x1195x26mm

80lm/W

DWB303018

18W

1440lm

80Ra

SMD2835

295x295x26mm

100lm/W

DWB606036

36W

3600lm

80Ra

SMD2835

595x595x26mm

DWB3012036

36W

3600lm

80Ra

SMD2835

295x1195x26mm

DWB6012036

60W

5400lm

80Ra

SMD2835

295x1195x26mm




◈  COMPARE

bg



1F
LED Used


Dolight will choose one or two adjoning binning LED to keep the panel consistency. Each batch panel SDCM<5 and in the same color.







2F
Flicker free driver and Flicking driver
Non flickering

Non flickering driver used;

The light is more comfortable.

Flickering

Flickering driver used;

It will cause the headache

Or eye tiredness


◈  FLEXIBLE INSTALLATION TYPE

bg



◈  PACKING

bg


1pc panel+1pc driver/box; 4 boxes/ carton


Panel Lights

Plastic Bags

Pearl Cotton


Inside Box

Carton

















◈  APPLICATION

bg



♦ Showrooms

♦ Boardrooms, offices, corridors

♦ Retail outlets

♦ Hospitals

♦ Hotels, motels
