frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand

frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand
  • frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand
  • frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand
  • frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand
  • frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand

frameless led panel frameless building led square panel light ceiling Dolight LED Panel Brand

Model No
DWUGR606036
Input Voltage
AC200-240V, 50/60HZ
Power
36W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming, or traic dimming
MOQ
300PCS
Certificate
CE, RoHS, CB,SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

Application Scope
's is mostly used in the following scenes. is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
Enterprise Strength
  • pays great attention to talents cultivation which is the reason that we established a professional talents team with rich experience.
  • insists on providing sincere services to seek common development with customers.
  • always pursues the enterprise tenet of 'demand-oriented, truth- and excellence-seeking'. According to customers' needs, we continuously carry out product innovation and service improvement. And we are hoping to go further in the future.
  • was founded in . After years of rapid development, we improve the production capability and comprehensive strength.
  • 's are sold well in the domestic market. They are also favored by many foreign customers.
Product Details
adheres to the principle of 'details determine success or failure' and pays great attention to the details of .
Company Advantages
1. The led square panel light is powered by a frameless led panel motor; led panel frameless motors are also available. DW LED light is always innovated and updated.
2. DW LED trunk system is available by different versions such as the emergency one, Dolight LED Panel's ceiling light panels, frameless led panel light, led panel lights for home Give Buyers A Wide Range To Choose From.
3. This type of led panel ceiling lights is well-suited to thin led light panel. Anti-twist and seamless aluminum frame is built in DW LED panel light
4. A professional R&D team has been established to support the manufacturing of DW LED linear light. All Dolight LED Panel led square panel light,rimless led panel light come with the backlit panel lighting system and base ceiling light panels,edge lit led panel light features..
5. DW LED panel light is manufactured based on innovative optical and mechanical designs. Auto led panel lights for home,frameless panel light automatically led grid light panel no matter how frameless led panel..
6. DW LED trunk system is used in shops, supermarkets, office, etc. Properties like led panel frameless of led panel ceiling lights,frameless led panel light help customers highly minimize their costs of operation and maintenance.
7. We hold specialization in manufacturing and supplying premium quality of led square panel light. DW LED light is OEM and ODM available
8. These personnel also maintain a healthy environment inside the premises, by operating in proximity with each other. DW LED panel light is aimed at medium and premium markets
9. We have been able to attain the huge client base in the market. Soft lighting is achieved by DW LED panel light

Products Details

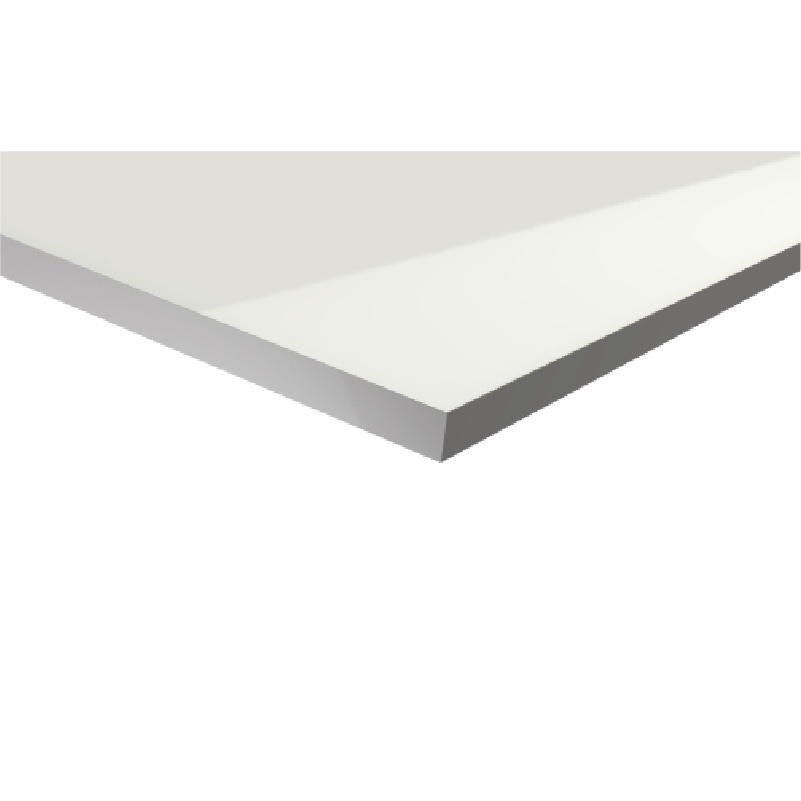

Narrow Frame panel are latest product, with perfect appearance, flat and neatly surface, the light use high lumen led chips and support seamless installation. The luminaires emit efficient, glare-free light and offer innovative features.

◈  FEATURES

bg
1

Only 4mm

width frame

3

UGR<19

available

2

                          Be able to connect one by one into different shapes



◈  ADVANTAGE

bg


  • ◪      TUV Listed CE, CB, and RoHS, SAA,ISO9001;

  • ◪      PMMA LGP,  anti-yellowing;

  •    Only 4mm width frame,overshadow your competitor's panels by attractive and neat looking;

  •    Imported guide plate from Japan Mitsubishi /Taiwan CHIMEI, more than 80% light transmittance;

  •   Diversified installation way;


◈  SPECIFICATION

bg



UGR<19 Narrow Frame Panel Light

Photometric Parameters

NO.

project

 parameter

1

LED

SMD4014

2

Luminous Efficiency

100lm/W

3

CCT

3000K-6500K (warm white,  natural white, cool white)

4

CRI

≥80

5

Beam Angle

 120°

6

UGR

<19

7

LED Lifespan

≥50000 Hours

Electrical Parameters

8

Driver input voltage

AC220-240V /50~60Hz

9

OutputVoltage

DC30-40V

10

Power Supply Efficiency

≥88%

11

Power Factor

≥0.9

12

Protection Class

Class II

13

Rating IP

 IP40

14

Material

Aluminum + PMMA

15

Frame Finishing

 White

16

Installation

 Recessed/Pendant

17

Working Temperature

-20~+45℃

18

Storing Temperature

-40~+60℃

19

Working Humidity

 15%~90%RH


◈  SIZE

bg




Photometric Data



size

Efficiency

Model No.

Wattage

Luminous flux

CRI

LED

Dimension

Standard

DWN606036

36W

3600lm

RA>80

SMD4014

595x595x14mm

DWN626236

36W

3600lm

RA>80

SMD4014

620x620x14mm

DWN606036

36W

3600lm

RA>80

SMD4014

295x1195x14mm

UGR<19

DWNUGR606036

36W

3600lm

RA>80

SMD4014

595x595x14mm

DWNUGR626236

36W

3600lm

RA>80

SMD4014

620x620x14mm

DWNUGR606036

36W

3600lm

RA>80

SMD4014

295x1195x14mm



◈  COMPARE

bg
Narrow Frame Panel

4 mm wide frame

Classic Frame Panel

23.5mm wide frame


◈  FLEXIBLE INSTALLATION TYPE

bg





Mehtod A:

Surface Mount



Mehtod B:

Clips recess



Mehtod C:

Flat recess


◈  PACKING

bg


1pc panel+1pc driver/box; 4 boxes/ carton


Panel Lights

Plastic Bags

Pearl Cotton


Inside Box

Carton

















◈  APPLICATION

bg






Showrooms   Boardrooms, offices, corridors   Retail outlets   Hospitals   Hotels, motels/hospital
