Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals

Model No
DWP606036CS
Input Voltage
AC200-240V, 50/60HZ
Power
36W
LED Source
SMD2835
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming, or Traic dimming
MOQ
300PCS
Certificate
CE, RoHS, CB,SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals
Product Comparison
linear led lighting, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.Dolight Optoelectronics's linear led lighting has the following advantages over other similar products.
Application Scope
Dolight Optoelectronics's linear led lighting is of excellent quality and is widely used in the Manufacturing Lights & Lighting industry.Dolight Optoelectronics always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.
Company Advantages
1. Inspection of Dolight LED Panel flat panel ceiling light involves various aspects. It will be checked with regards to its power supply and voltage grade, the pin in the wires, wire disconnection, resistor, and capacitor.
2. By virtue of superior lamp beads, suspended ceiling light panels has the soft light close to natural light, high color rendering index and good color reproduction. It can bring a comfortable user experience.
3. suspended ceiling light panels is manufactured based on superior lamp beads and constant-current driving technology, which effectively reduces stroboscopic phenomenon that do harm to people. It has high luminous efficiency, low power consumption and light decay. Moreover, it is long in service life and excellent in energy saving and environmental protection.
4. [企业简称] has a a group of experienced and professional production personnel. Besides, we have introduced advanced foreign quality management system, and have established a quality inspection team responsible for the measurement and control work. All this provides favorable conditions for producing high-quality suspended ceiling light panels .

Products Details

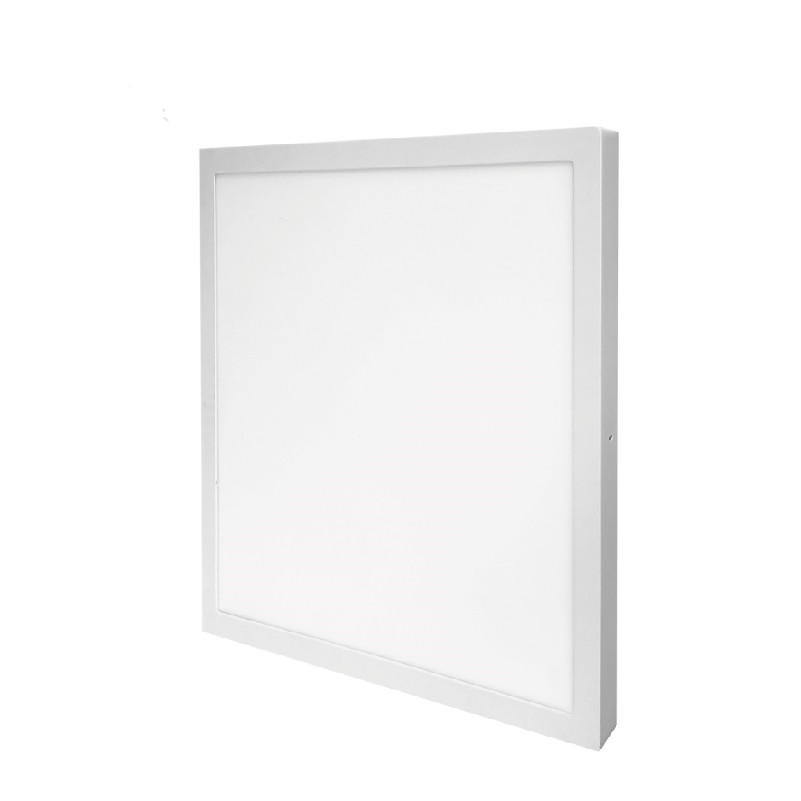

The Surface Mount LED Mini Panel adopt side emitting technology with uniformity illumination & no glare. Aluminum housing for superior heat dissipation and for a strong support.

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-1


◈  FEATURES

bg
1

Surface mount

installation

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-2
3

UGR<19 optional


2

High efficiency:100lm/W or 120lm/W



◈  ADVANTAGE

bg


  • ◪      TUV Listed CE, CB, and RoHS, SAA,ISO9001;

  • ◪      Surface mounted directly offers easy installation and saves cost from Panel+surface mount kits;

  •    Anti-twisted frame with seamless corner;

  •    No white or black dots,no yellow lines or bright lines on the edge


◈  SPECIFICATION

bg



Surface Mount LED Panel Light

Photometric Parameters

NO.

Project

Parameter

1

LED

High luminous flux SMD LED Samsung/Osram

2

Luminous Efficiency

100 lm/W

3

CCT

3000K-5700K (warm white, natural white, cool white)

4

CRI

≥80

5

Beam Angle

120°

7

LED Lifespan

≥50000 Hours

Electrical Parameters

8

Driver Input Voltage

AC220-240V /50-60Hz

9

OutputVoltage

DC30-40V

10

Power Supply Efficiency

≥88%

11

Power Factor

≥0.9

12

Protection Class

Class II

General Parameters

13

Rating IP

IP40

14

Material

Aluminum + PMMA

15

Frame Finishing

White

16

Installation

Recessed/Pendant

17

Working Temperature

-20~+45℃

18

Storing Temperature

-40~+60℃

19

Working Humidity

15%~90%RH


◈  SIZE

bg


Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-3

Photometric Data

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-4

Size



Efficiency

Model No.

Wattage

Luminous Flux

CRI

LED

Dimension

120lm/W

DWP606036BCS

36W

4320lm

80Ra

SMD2835

595x595x40mm

DWP626236BCS

36W

4320lm

80Ra

SMD2835

620x620x40mm

DWP3012036BCS

36W

4320lm

80Ra

SMD2835

295x1195x40mm

100lm/W

DWP303018CS

18W

1620lm

80Ra

SMD2835

295x295x40mm

DWP306036CS

36W

3600lm

80Ra

SMD2835

295x595x40mm

DWP606036CS

36W

3600lm

80Ra

SMD2835

595x595x40mm

DWP626236CS

36W

3600lm

80Ra

SMD2835

620x620x40mm

DWP3012036CS

36W

3600lm

80Ra

SMD2835

295x1195x40mm


◈  COMPARE

bg
1F
Flicker free driver and Flicking driver
Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-5
Surface mount panel

Specilized in surface mount

Panel lights and frames are integrated

Simple installation

Better appearance

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-6
Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-7
panel+surface mount frame

panel is separated with the frame

more steps for installation


2F
Installation



Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-8


◈  PACKING

bg


1pc panel+1pc driver/box; 4 boxes/ carton


Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-9

Panel Lights

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-10

Plastic Bags

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-11

Pearl Cotton


Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-12

Inside Box

Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-13

Carton

















◈  APPLICATION

bg



Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-14
Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-15
Dolight LED Panel Top suspended ceiling light panels manufacturers for hospitals-16

♦ Showrooms     ♦ Boardrooms, offices, corridors      ♦ Retail outlets     ♦ Hospitals      ♦ Hotels,motels








Company Features
1. Dolight Optoelectronics Technology Co.,Ltd. is a well-recognized company headquartered in China. We are engaged in manufacturing and exporting flat panel ceiling light .
2. We have a professional R&D team that is supported by state-of-the-art technology development centers. This team is passionate about new product development and updating the existing products.
3. Our research and development section is open to clients. We are willing to share new technology and work with clients together to upgrade their products and developing new ones together. Get an offer! We bear social responsibilities. By linking our economic principles with an environmental approach we not only contribute actively to protecting the climate but also create measurable added value for our company. We are working hard to manufacture green products so as to support environmental friendliness. We will use materials that do not contribute to environmental degradation or use recycled materials. We uphold a customer-first strategy. We seek the best way to serve them, listen to them, and improve ourselves to cater to clients' requirements.
