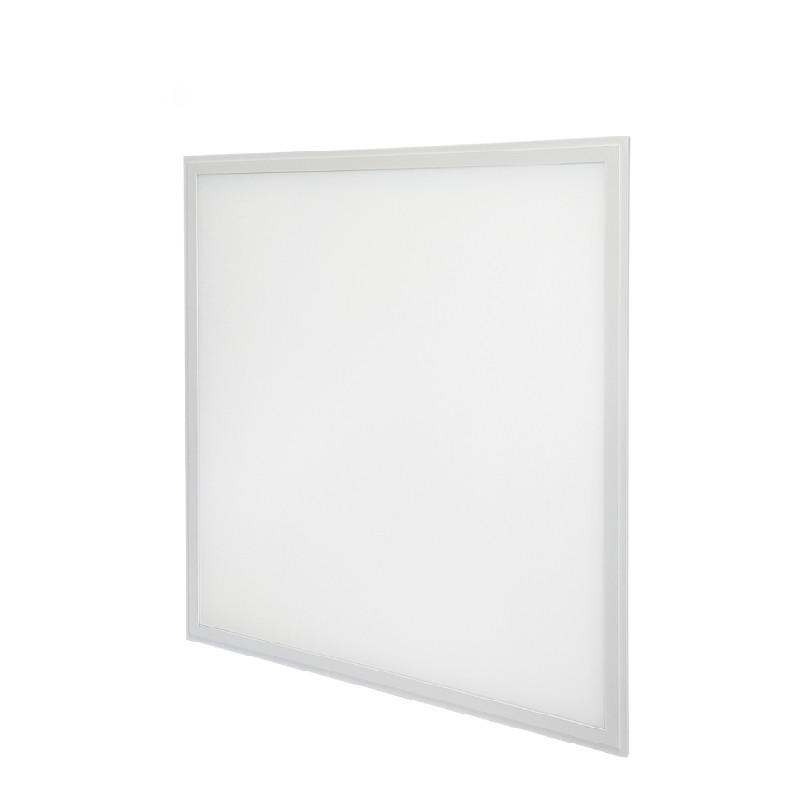

Dolight LED Panel Latest led flat panel factory for boardrooms

Dolight LED Panel Latest led flat panel factory for boardrooms

Dolight LED Panel Latest led flat panel factory for boardrooms

Model No
DWUGR606036M
Input Voltage
AC200-240V, 50/60HZ
Power
36W
LED Source
SMD4014
Color Temp
3000K/4000K/5700K
CRI
Ra>80
Power Factor
>0.9
IP Rate
IP40
Optional
0-10V dimming, Dali dimming, or Traic dimming
MOQ
300PCS
Certificate
CE, RoHS, CB,SAA
Warranty Time
5 Years
Payment Terms
T/T
Delivery Time
5 to 7dasy for samples; Bulk order need 25 days after deposit
Package
Paper carton with wooden pallet
Supply Ability
7000pcs per month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Dolight LED Panel Latest led flat panel factory for boardrooms
Enterprise Strength
  • Dolight Optoelectronics gives priority to customers and runs the business in good faith. We are devoted to providing quality services.
Product Details
With a focus on details, Dolight Optoelectronics strives to create high-quality linear led lighting.Closely following the market trend, Dolight Optoelectronics uses advanced production equipment and manufacturing technology to produce linear led lighting. The product receives favors from the majority of customers for the high quality and favorable price.
Company Advantages
1. Dolight LED Panel led flat panel has gone through appearance inspections. These checks include color, texture, spots, color lines, uniform crystal/grain structure, etc.
2. With superior chips, led flat panel is high in luminous efficiency, strong in light intensity, low in power consumption and excellent in energy saving and environmental protection.
3. As known, lights emitted from LED look more natural than the traditional light bulbs. This product does the same. It emits light that makes items look more vibrant.

Products Details

Thanks for choosing UGR<19  M Series Panel Series light provide a soft, bright luminance that is gentle on the eyes and ideal for both domestic and commercial environments. Thanks to the use of an edge-lighting design, the output is uniform across the panel without any dark or weak spots, and the super-low profile provides a nice clean ceiling line.


Dolight LED Panel Latest led flat panel factory for boardrooms-1


◈  FEATURES

bg
1

PS LGP

Dolight LED Panel Latest led flat panel factory for boardrooms-2
3

100lm/W

2

UGR<19



◈  ADVANTAGE

bg


  • ◪      TUV Listed CE, CB, and RoHS, SAA,ISO9001;

  • ◪      Best price and quality balance panels;

  •    3.Anti-twisted frame with seamless corner;

  •    Uniform light distribution;

  •    3 years warranty time


◈  SPECIFICATION

bg



M Series LED Panel Light

Photometric Parameters

NO.

Project

Parameter

1

LED

High luminous flux SMD LED Samsung/Osram

2

Luminous Efficiency

100 Lm/W

3

CCT

3000K-6500K (warm white, natural white, cool white)

4

CRI

≥80

5

Beam Angle

120°

7

LED Lifespan

≥50000 Hours

Electrical Parameters

8

Driver Input Voltage

AC220-240V /50-60Hz

9

OutputVoltage

DC30-40V

10

Power Supply Efficiency

≥88%

11

Power Factor

≥0.9

12

Protection Class

Class II

General Parameters

13

Rating IP

IP40

14

Material

Aluminum + PMMA

15

Frame Finishing

White

16

Installation

Recessed/Pendant

17

Working Temperature

-20~+45℃

18

Storing Temperature

-40~+60℃

19

Working Humidity

15%~90%RH


◈  SIZE

bg


Dolight LED Panel Latest led flat panel factory for boardrooms-3

Photometric Data

Dolight LED Panel Latest led flat panel factory for boardrooms-4

Size



Efficiency

Model No.

Wattage

Luminous Flux

CRI

LED

Dimension

100lm/W

DWUGR606036M

36W

3600lm

80Ra

SMD4014

595x595x10.5mm

DWUGR3012036M

36W

3600lm

80Ra

SMD4014

295x1195x10.5mm

DWUGR626236M

36W

3600lm

80Ra

SMD4014

620x620x10.5mm



◈  COMPARE

bg
1F
Flicker free driver and Flicking driver
Dolight LED Panel Latest led flat panel factory for boardrooms-5
Non flickering

Non flickering driver used;

The light is more comfortable.

Dolight LED Panel Latest led flat panel factory for boardrooms-6
Dolight LED Panel Latest led flat panel factory for boardrooms-7
Flickering

Flickering driver used;

It will cause the headache

Or eye tiredness


2F
Installation


Dolight LED Panel Latest led flat panel factory for boardrooms-8


◈  PACKING

bg


1pc panel+1pc driver/box; 4 boxes/ carton


Dolight LED Panel Latest led flat panel factory for boardrooms-9

Panel Lights

Dolight LED Panel Latest led flat panel factory for boardrooms-10

Plastic Bags

Dolight LED Panel Latest led flat panel factory for boardrooms-11

Pearl Cotton


Dolight LED Panel Latest led flat panel factory for boardrooms-12

Inside Box

Dolight LED Panel Latest led flat panel factory for boardrooms-13

Carton

















◈  APPLICATION

bg



Dolight LED Panel Latest led flat panel factory for boardrooms-14

♦ Commercial office

♦ Retail/Shopping Mail Hotels

♦ Conference&Meeting Rooms

♦ Hotels&Supermarkeets








Company Features
1. Dolight Optoelectronics Technology Co.,Ltd. is a world leader in the development, manufacture and supply of high performance, high quality led flat panel .
2. The production process of led wall panel light is strictly inspected to make sure quality.
3. Our goal is to help customers get products in perfect condition and in the most cost-effective way. This means helping them choose the right materials, right designs, and the right machinery that work for their specific application. Inquire now! We are a recognized leader in corporate responsibility. We work hard to create greater value for clients, partners, and shareholders, and create growth opportunities for our employees. We have our own environmental goals and policies. We avoid producing waste during production and use biodegradable packaging materials which do no harm to the environment. Inquire now! Customer focus is deeply embedded into our mindset, driving us to deliver on time, on cost and on quality. We partner with our customers to satisfy their needs and deliver benefits through valuable and sustainable efforts. Inquire now!
